Two elastic disks, a and b, bouncing in a square : a variant of the gas of Szilard.

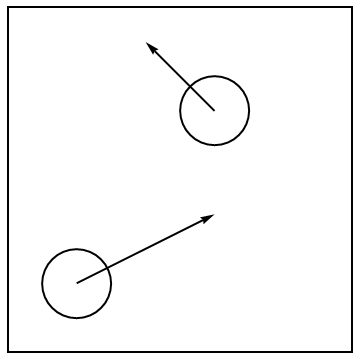

The initial conditions are clearly apparent from the following figure (Arbitrary units) :

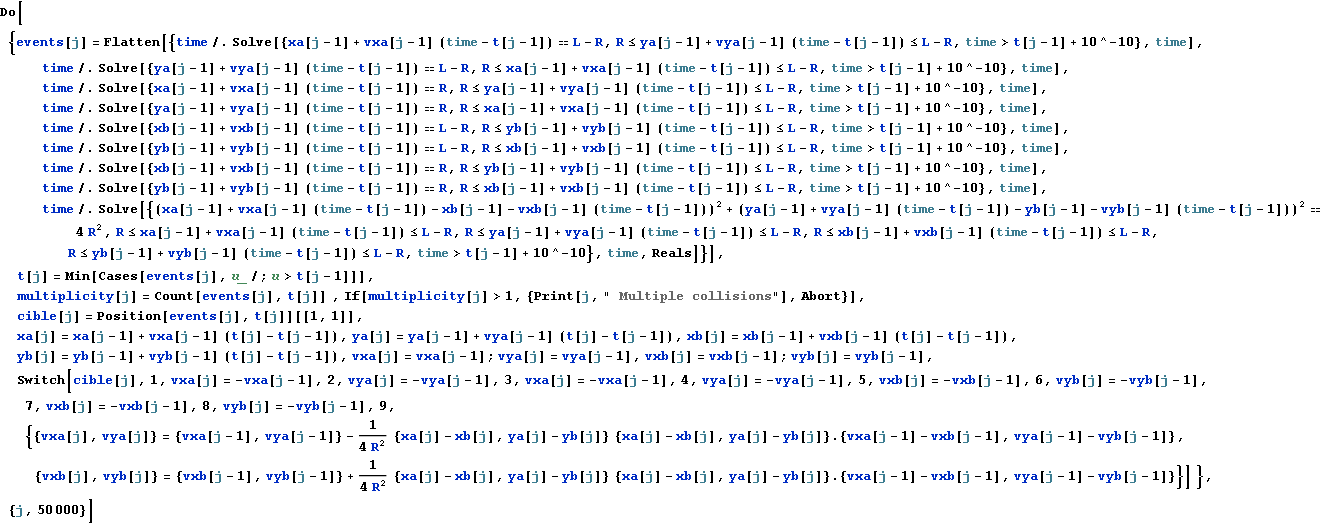

Time evolution : each collision (one wall or the other disk) is named an “event” (9 possibilities).  Events are labeled by integer j.  Multiple collisions are forbidden (The program halts prematurely).  Cible[j] is an integer (∈{1,...,9}) memorizing the type of event.



Checking the conservation of energy :

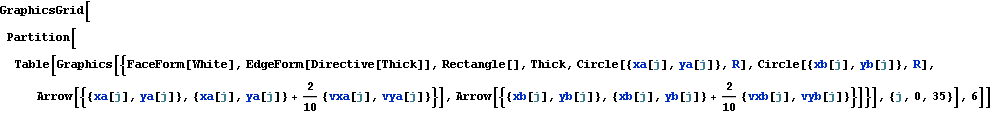

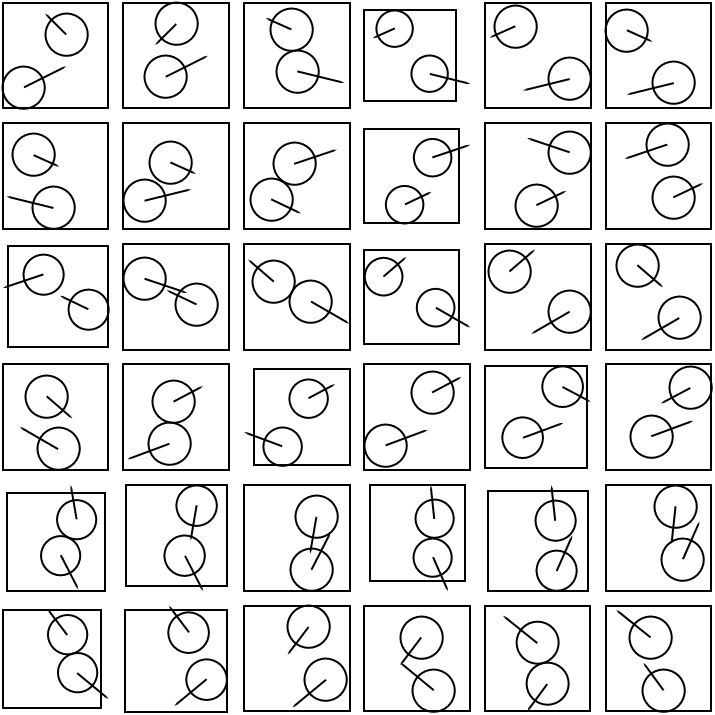

50000 events have been calculated, 36 are displayed here :

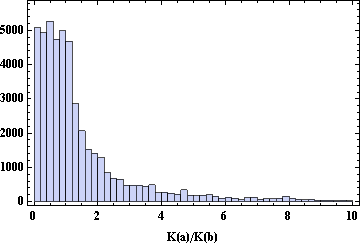

Histogram of the kinetic energy ratio, szilard_12.gif : the maximum corresponds to the equipartition.




Mean time between two collisions (a and b) :
