The principle of finite descent

Preliminaries

Select 10 points at random in a unit square :



Permute elements i and j in a list :






Test if segments i (joining red[[i]] and blue[[i]]) and j (joining red[[j]] and blue[[j]]) intersect :


(See Annexe below)


Finite descent (first example)

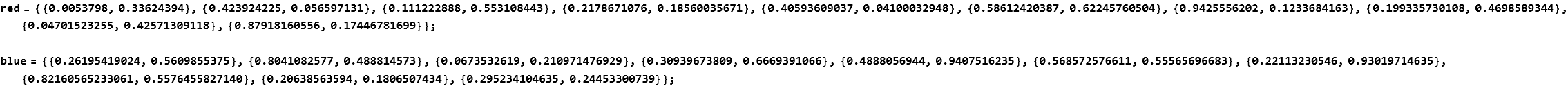

10 red points and 10 blues points in a unit square :


A pleasant random choice constantly valid in this file :



Initial display :

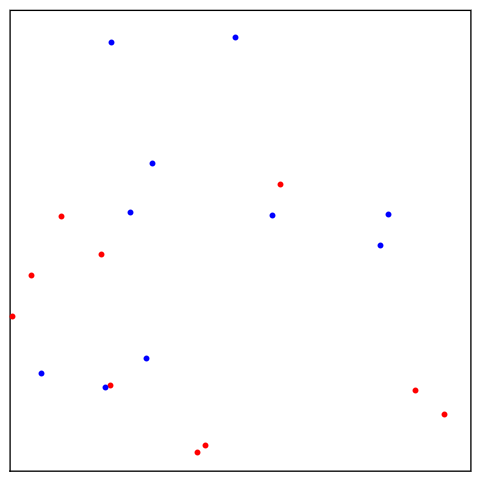

The 20 points :

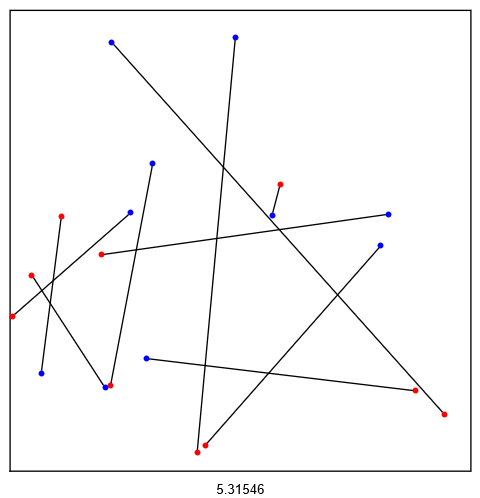

One-to-one pairing of the red and blue points (In the order 1-1, 2-2, ..., 10-10) (Total length, L,  of the straight segments displayed) :

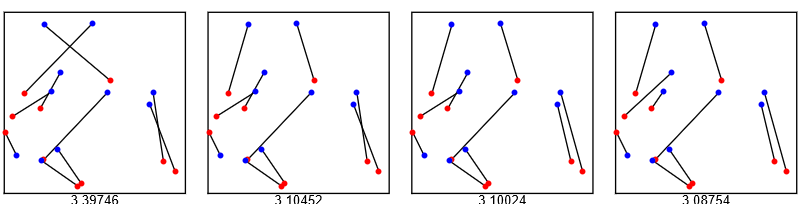

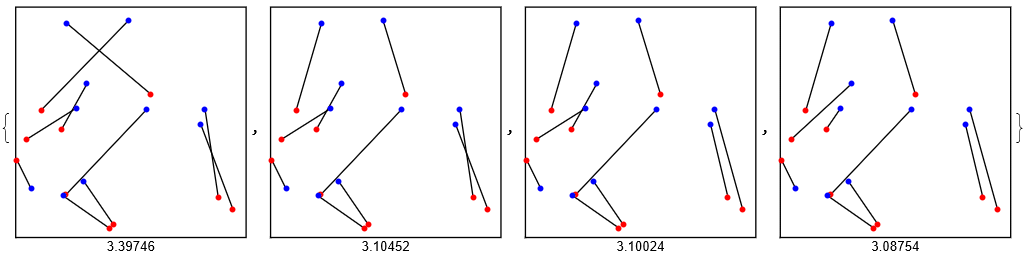

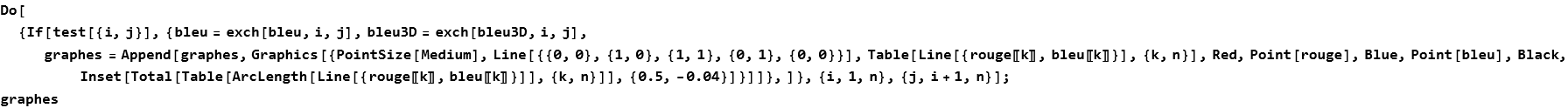

Progressive uncrossing of the segments. If the final  uncrossing is incomplete, the cell must be manually reactivated until complete uncrossing is achieved :





Finite descent (second example)

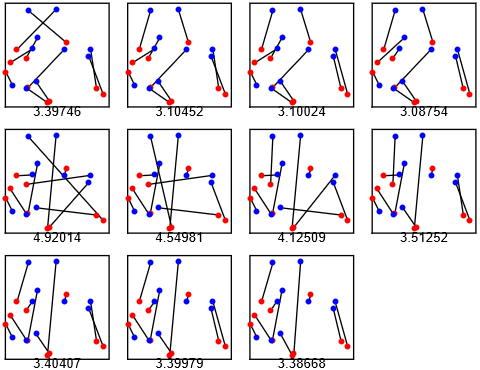

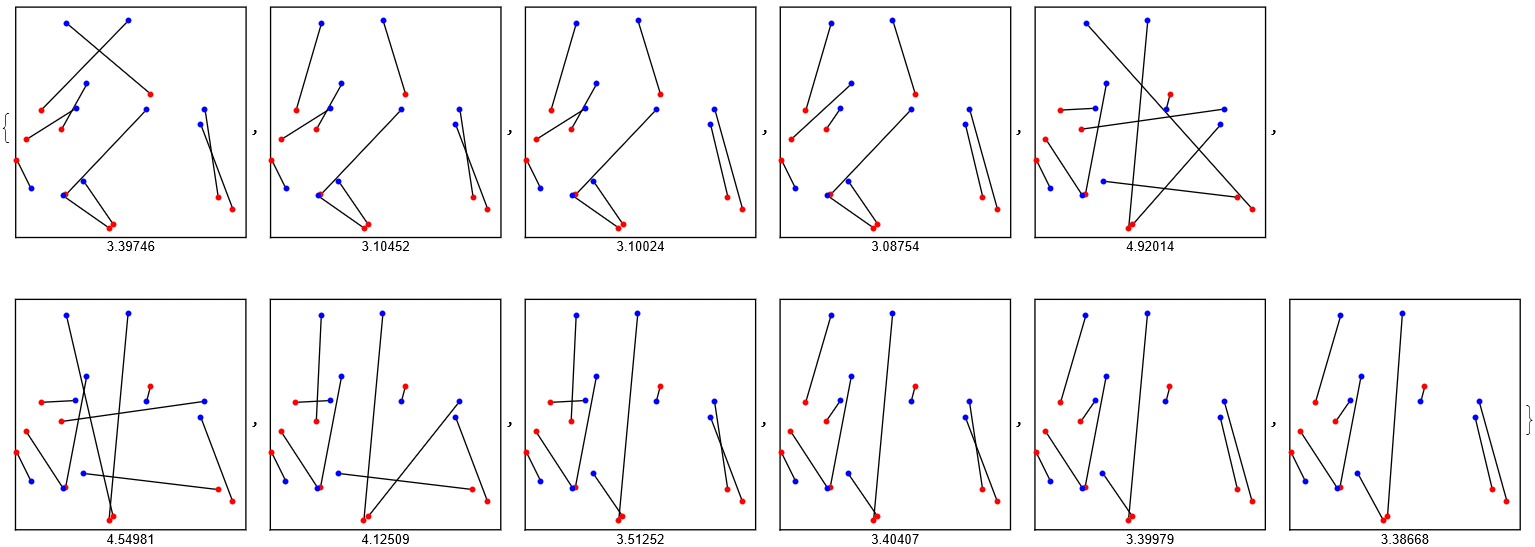

The previous calculation started with bleu=Permutations[blue][[1]] (=blue i.e. Identity permutation). One can do better if starting  with bleu=Permutations[blue][[1066281]] :









New starting point :








Intersection point (X = {xx, yx}) between two straight lines, ab et cd :
